Dec 30, 2022

搭建一个全自动STEAM挂刀前后端

Aims

能够实时对饰品售出比例、求购比例做监控
能够自动更改价格（涉及到 STEAM 令牌生成、交易确认等过程）
能够爬取低比例饰品
能够对饰品做可视化管理
能够对不同账户进行管理
较为安全的信息保存/处理方式
…

后端

环境

计划使用FASTAPI作为后端。先使用Conda创建环境，并安装FASTAPI

pip install fastapi[all]

使用uvicorn作为运行程序的服务器

先写好最基本的框架

import uvicorn
from fastapi import FastAPI

app = FastAPI()

if __name__ == "__main__":
    uvicorn.run("main:app", host="0.0.0.0", port=4345)

STEAM 相关

{
  "donotcache": 1646663656289, // 同上文时间戳
  "password": "base64_encoded_encrypted_password", // 经过base64之后的rsa公钥加密的二进制数据
  "username": "username", // 用户名
  "twofactorcode": "Guard_Code", // 手机令牌
  "emailauth": "", // 邮箱验证码
  "captchagid": 4210307962151791925, // CaptchaGID, 由`do_login/`返回值 获取, 并在`https://steamcommunity.com/login/rendercaptcha/?gid=%captchagid%`处获取Captcha图片
  "captcha_text": "th37yr", // Captcha验证码, 如果需要的话，与上项应同时存在
  "rsatimestamp": 216071450000, // RSA过期时间，在`getrsakey/`中可以获取
  "remember_login": true // 保存登录信息（虽然我们不需要）
}

结果通过不同的返回值告知，例如:

{
  "success": false,
  "requires_twofactor": true,
  "message": ""
}

{
  "success": false,
  "message": "请重新输入下方验证码中的字符来验证此为人工操作。",
  "requires_twofactor": false,
  "captcha_needed": true,
  "captcha_gid": "4209182061243079173"
}

实现

采用aiohttp进行交互

import base64
import rsa
import time

from aiohttp import ClientSession
from typing import Dict

BASE_STEAM_URL = "https://steamcommunity.com"
GET_RSA_KEY_API_URL = "/login/getrsakey/"
DO_LOGIN_API_URL = "/login/dologin/"
LOGIN_URL = "/login?oauth_client_id=DEADBEEF&oauth_scope=read_profile%20write_profile%20read_client%20write_client"


class Response(Dict):

    def __getattr__(self, item):
        return self.get(item)

    def __setattr__(self, key, value):
        self.__setitem__(key, value)


async def do_login(username: str,
                   password: str,
                   twofactorcode: str = '',
                   emailauth: str = '',
                   captchagid: int = 0,
                   captcha_text: str = '',
                   headers: Dict = None,
                   cookies: Dict = None,
                   **kwargs) -> Response:
    """
    login steam and return the Response
    :param username: steam username
    :param password: steam password, should be plaintext
    :param twofactorcode: optional, steam guard code
    :param emailauth: optional, steam email guard code
    :param captchagid: optional, steam will tell it if needed
    :param captcha_text: optional, captcha text, should be set together with captchagid
    :param headers: optional, custom headers
    :param cookies: optional, custom cookies
    :param kwargs: optional, args for ClientSession
    :return:
    """
    if headers is None:
        headers = {"X-Requested-With": "com.valvesoftware.android.steam.community",
                   "Referer": "https://steamcommunity.com/mobilelogin?oauth_client_id=DEADBEEF&oauth_scope=read_profile%20write_profile%20read_client%20write_client"}
    if cookies is None:
        cookies = {"mobileClientVersion": "0 (2.3.13)",
                   "mobileClient": "android",
                   "Steam_Language": "schinese"}

    async with ClientSession(headers=headers, cookies=cookies, **kwargs) as session:
        data = {
            "donotcache": int(time.time()*1000),
            "username": username
        }
        async with session.post(BASE_STEAM_URL + GET_RSA_KEY_API_URL, data=data) as resp:
            if resp.status == 200 and (response := await resp.json()).get("success"):
                response = Response(response)
                modulus = int(response.publickey_mod, 16)
                exponent = int(response.publickey_exp, 16)
                rsa_timestamp = response.timestamp
            else:
                if resp.status == 200:
                    raise ConnectionError(f"Get RSA Key Error! [{resp.status}]: {response}")
                else:
                    raise ConnectionError(f"Get RSA Key Error! Error Code: {resp.status}")

        public_key = rsa.PublicKey(modulus, exponent)
        en_password = password.encode(encoding='UTF-8')
        en_password = rsa.encrypt(en_password, public_key)
        en_password = base64.b64encode(en_password)

        data = {
            "donotcache": int(time.time() * 1000),
            "username": username,
            "password": en_password.decode('UTF-8'),
            "twofactorcode": twofactorcode,
            "emailauth": emailauth,
            "rsatimestamp": rsa_timestamp,
            "remember_login": True
        }
        if captchagid and captcha_text:
            data["captchagid"] = captchagid
            data["captcha_text"] = captcha_text
        async with session.post(BASE_STEAM_URL + DO_LOGIN_API_URL, data=data) as resp:

            if resp.status == 200:
                response = Response(await resp.json())
                if response.success:
                    response.cookie = resp.cookies.output()
                    response.cookie_object = resp.cookies
                return response
            else:
                raise ConnectionError(f"Login Error! Error Code: {resp.status}")

整体比较简单，没什么好说的。创建了个Response类省去一点点时间。

值得注意的是当登陆成功时我传入了一个cookie和一个cookie_object(Simplecookie对象)，方便后续的使用。

TODO: raise 的是ConnectionError，后续可能会自己创建几个异常专门处理。

令牌

在实现令牌的生成之前，我们先来了解一下令牌的实现原理

实现原理

首先明确的是，STEAM 令牌的生成算法是一种称为Time-based One-time Password(TOTP)的算法

根据 steam 令牌生成所使用的RFC-6238标准，在这种算法的实现过程中，Client和Server需要协商一个共同的Secret作为密钥——也就是在令牌详细数据里的shared_secret项

此时，由默认的T0(Unix Time)和T1(30s)以及当前的时间戳计算出将要发送的消息C（计数，即从T0到现在经过了多少个T1），并使用Secret作为密钥，通过默认的加密算法SHA-1计算出HMAC值

取HMAC的最低 4 位有效位作为byte offset并丢弃

丢弃这 4 位之后，从byte offset的MSB开始，丢弃最高有效位（为了避免它作为符号位），并取出 31 位，密码便是它们作为以 10 为基数的数字。

STEAM 在这个基础上，对数字进行了CODE_CHARSET的对应。具体方法是将密码所对应的 10 进制数除以CODE_CHARSET的长度，余数作为CODE_CHARSET的下标，商作为新的 10 进制数继续进行以上运算，直到取出 5 个数为止。

此处的CODE_CHARSET及对应算法未找到相关来源，推测应该是反编译了STEAM客户端or 高手的尝试

实现过程

~~重复造轮子是有罪的。本着既然都是自己用那多安几个库也无所谓的想法，我选择了pyotp库作为一键TOTP生成工具。~~

~~然而失败了，不知道什么原因 base32 的 secret 生成出来不正确~~

本着既然已经研究透彻了实现原理的心态，我决定手动实现一次这个算法，同时，不使用现成的库也可以精简一下项目。

import hmac
import hashlib
import time
import base64


def gen_guard_code(shared_secret: str) -> str:
    """
    Generate the Guard Code using `shared_secret`
    :param shared_secret: shared_secret, should be a base64-encoded string
    :return: the guard code
    """
    shared_secret = shared_secret.encode('UTF-8')
    b64_decoded_shared_secret = base64.b64decode(shared_secret)
    time_bytes = (int(time.time()) // 30).to_bytes(8, byteorder='big')  # Turn time_stamp into a 64 bit unsigned int
    hmac_code = hmac.new(b64_decoded_shared_secret, time_bytes, hashlib.sha1).digest()  # Generate HMAC code
    byte_offset = hmac_code[-1] & 0xf  # Get last 4 bits as bytes offset
    code_int = (
        (hmac_code[byte_offset] & 0x7f) << 24 |  # Drop off the first bit (MSB)
        (hmac_code[byte_offset+1] & 0xff) << 16 |
        (hmac_code[byte_offset+2] & 0xff) << 8 |
        (hmac_code[byte_offset+3] & 0xff)
    )
    CODE_CHARSET = [50, 51, 52, 53, 54, 55, 56, 57, 66, 67, 68, 70, 71,
                    72, 74, 75, 77, 78, 80, 81, 82, 84, 86, 87, 88, 89]
    codes = ''
    for _ in range(5):
        code_int, i = divmod(code_int, len(CODE_CHARSET))
        codes += chr(CODE_CHARSET[i])
    return codes

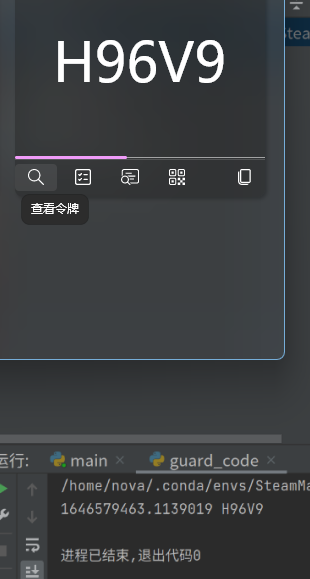

成功生成了令牌

交易确认

交易应该算是 STEAM 相关的最麻烦的东西了。需要identity_secret和device_id作为参数。

确认列表

通过手机端抓包可以知道确认界面相关的API_URL是https://steamcommunity.com/mobileconf/conf?%payload%

首先我们需要实现的是fetch_confirmation_query_params，也就是获取确认的列表

需要的参数有

Param	Description
p	`device_id`
a	`steam_id`
t	时间戳
m	设备（`Android`/`IOS`)
tag	标签，唯一值`conf`（待确定）
k	`timehash`，由`time_stamp`和`tag`作为参数，由`identity_secret`作为密钥生成的 Base64 编码的`HMAC`码

首先写出timehash的生成

import base64
import hashlib
import hmac
import time


def gen_confirmation_key(times: int, identity_secret: str, tag: str = 'conf') -> str:
    """
    Generate the secret for confirmation to check.
    :param times: time_stamp, should be int instead of float
    :param identity_secret:
    :param tag: 'conf', 'allow', 'cancel', 'details%id%'
    :return: base64-encoded secret, which is not urlencoded.
    """
    msg = times.to_bytes(8, byteorder='big') + tag.encode('UTF-8')
    key = base64.b64decode(identity_secret.encode('UTF-8'))
    secret = hmac.new(key, msg, hashlib.sha1).digest()
    return base64.b64encode(secret).decode('UTF-8')

之后写出请求的调用，确认页面似乎没有前后端分离，因此我们只能通过爬虫爬取确认列表。

from aiohttp import ClientSession
from urllib.parse import urlencode, quote_plus

from typing import Union, Dict, List
from http.cookies import SimpleCookie


BASE_STEAM_URL = "https://steamcommunity.com"
MOBILECONF_URL = "/mobileconf/conf"


async def fetch_confirmation_query(cookies: Union[Dict, SimpleCookie],
                                   steam_id: str,
                                   identity_secret: str,
                                   device_id: str,
                                   tag: str = "conf",
                                   m: str = "android",
                                   headers: Dict = None) -> Dict[str, Union[str, List[Dict]]]:
    """
    fetch confirmation query as a list of json dict.
    :param cookies: Cookies contains login information
    :param steam_id: 64bit steamid
    :param identity_secret:
    :param device_id:
    :param tag: 'conf'
    :param m: 'android', 'ios'
    :param headers:
    :return: Response of confirmation query.
    """
    if headers is None:
        headers = {
            "X-Requested-With": "com.valvesoftware.android.steam.community",
            "Accept-Language": "zh-CN,zh;q=0.9"
        }
    times = int(time.time())
    query = {
        "p": device_id,
        "a": steam_id,
        "k": gen_confirmation_key(times, identity_secret, tag),
        "t": times,
        "m": m,
        "tag": tag
    }

    async with ClientSession(headers=headers, cookies=cookies) as session:
        print(BASE_STEAM_URL + MOBILECONF_URL + '?' + urlencode(query))
        print(urlencode(query, safe=":"), type(urlencode(query)))
        async with session.get(BASE_STEAM_URL + MOBILECONF_URL + '?' + urlencode(query)) as resp:
            if resp.status == 200:
                # do something
                pass
            else:
                raise ConnectionError(f"Fetch Confirmation Error! Error Code: {resp.status}")

根据以前的习惯，我仍选择了beautifulsoup4作为提取器，lxml作为解析器

from bs4 import BeautifulSoup


def steam_confirmation_parser(html: str):
    soup = BeautifulSoup(html, 'lxml')
    confirmations = soup.find_all("div", class_="mobileconf_list_entry")
    if len(confirmations):
        data_list = []
        for confirmation in confirmations:
            data = {
                "type": confirmation.get('data-type'),
                "confid": confirmation.get('data-confid'),
                "key": confirmation.get('data-key'),
                "creator": confirmation.get('data-creator'),
                "accept_text": confirmation.get('data-accept'),
                "cancel_text": confirmation.get('data-cancel'),
                "img": confirmation.find('img')['src'],
                "desc": "\n".join(confirmation.stripped_strings)
            }
            data_list.append(data)
        return {
            "success": True,
            "data": data_list
        }
    return {
        "success": soup.find('div', id="mobileconf_empty"),
        "data": ["\n".join(soup.find('div', id="mobileconf_empty").stripped_strings)]
        if soup.find('div', id="mobileconf_empty") else ["Invalid Html\nIt is not a parsable html."]
    }

发送请求

有了上面的基础，发送请求是很容易的。

url是https://steamcommunity.com/mobileconf/ajaxop?%payload%

payload的参数如下

Param	Description
p	`device_id`
a	`steam_id`
t	时间戳
m	设备（`Android`/`IOS`)
op	动作，有`cancel`和`allow`
k	`timehash`，由`time_stamp`和`op`作为参数，由`identity_secret`作为密钥生成的 Base64 编码的`HMAC`码
cid	`data-confid`，在`class`为`mobileconf_list_entry`的`<div>`标签中给出
ck	`data-key`，在`class`为`mobileconf_list_entry`的`<div>`标签中给出

AJAX_POST_URL = "/mobileconf/ajaxop"

async def send_confirmation_ajax(cookies: Union[Dict, SimpleCookie],
                                 steam_id: str,
                                 identity_secret: str,
                                 device_id: str,
                                 cid: str,
                                 ck: str,
                                 op: str = "allow",
                                 m: str = "android",
                                 headers: Dict = None) -> bool:
    """
    Send AJax post to allow/cancel a confirmation
    :param cookies: Cookies contains login information
    :param steam_id: 64bit steamid
    :param identity_secret:
    :param device_id:
    :param cid: data-confid
    :param ck: data-key
    :param op: `allow` or `cancel`
    :param m: 'android', 'ios'
    :param headers:
    :return: The status
    """
    if headers is None:
        headers = {
            "X-Requested-With": "XMLHttpRequest",
        }
    times = int(time.time())
    query = {
        "op": op,
        "tag": op,
        "p": device_id,
        "a": steam_id,
        "k": gen_confirmation_key(times, identity_secret, op),
        "t": times,
        "m": m,
        "cid": cid,
        "ck": ck
    }
    async with ClientSession(headers=headers, cookies=cookies) as session:
        async with session.get(BASE_STEAM_URL + AJAX_POST_URL + '?' + urlencode(query)) as resp:
            print(await resp.read())
            if resp.status == 200:
                return (await resp.json()).get('success')
            else:
                raise ConnectionError(f"Send Confirmation Ajax Error! Error Code: {resp.status}")

详情

物品详情也有一个 api，不过我暂时没有想好怎么用，总之先把它写出来了

Param	Description
p	`device_id`
a	`steam_id`
t	时间戳
m	设备（`Android`/`IOS`)
tag	标签，`details%id%`，`id`为`data-confid`，在`class`为`mobileconf_list_entry`的`<div>`标签中给出
k	`timehash`，由`time_stamp`和`tag`作为参数，由`identity_secret`作为密钥生成的 Base64 编码的`HMAC`码

TODO

DETAIL_URL = "/mobileconf/details/"

async def fetch_confirmation_details(cookies: Union[Dict, SimpleCookie],
                                     steam_id: str,
                                     identity_secret: str,
                                     device_id: str,
                                     cid: str,
                                     m: str = "android",
                                     headers: Dict = None) -> Dict[str, str]:
    """
    Fetch a confirmation's details
    :param cookies: Cookies contains login information
    :param steam_id: 64bit steamid
    :param identity_secret:
    :param device_id:
    :param cid: data-confid
    :param m: 'android', 'ios'
    :param headers:
    :return: The Response
    """
    if headers is None:
        headers = {
            "X-Requested-With": "com.valvesoftware.android.steam.community",
            "Accept-Language": "zh-CN,zh;q=0.9"
        }
    times = int(time.time())
    tag = "details" + cid
    query = {
        "tag": tag,
        "p": device_id,
        "a": steam_id,
        "k": gen_confirmation_key(times, identity_secret, tag),
        "t": times,
        "m": m,
    }
    async with ClientSession(headers=headers, cookies=cookies) as session:
        async with session.get(BASE_STEAM_URL + DETAIL_URL + cid + '?' + urlencode(query)) as resp:
            if resp.status == 200:
                return await resp.json()
            else:
                raise ConnectionError(f"Fetch Confirmation Details Error! Error Code: {resp.status}")
